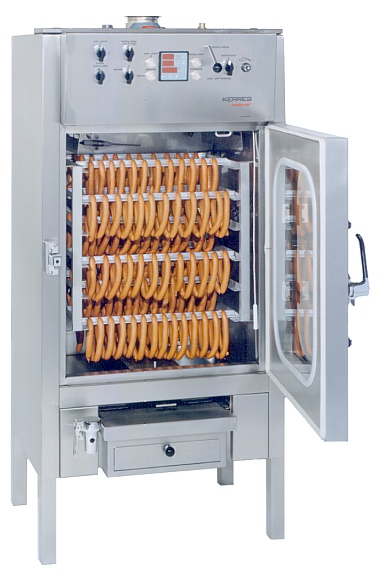

CS350 Smoking Chamber
  • Product Intro.
  • Parameters

Possible operations: Drying, smoking, cooking, dry cooking, roasting and showering.

Control: Microprocessor-control MAXI 1001 with delay time, operating time,

house temperature, internal temperature and delta-t-cooking-method.

1 control lever for flap operation.

Temperature range: Operating temperature up to max. 180°C

Humidity / Cooking: Interval water injections.

Air circulation: Continuous air circulation system.

Construction: Completely built of stainless steel, material 1.4301

Door sealing: Consisting of heat and grease resistant silicone.

Motor: 1 motor 2800/1400 rpm., 0,2 kW

Interior: Supporting angles for smoke sticks 53 cm and for 6 pcs. 1/1 screens (28 x 53 cm).

Smoke generation: Built-in drawer smoke generator for sawdust, manual operation.

Cleaning: Incorporated shower and cleaning system.


Voltage

230V~/400V~

Output

500W

Size of knife

300mm

Revolutions of knife

230转/每分

cutting thickness

0-24mm

Dimentions

600*570*420mm

Weight

37.1kg
