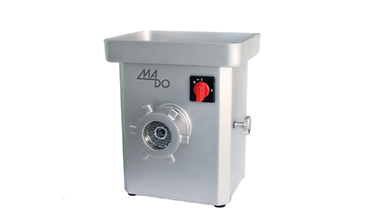

TG100 Table Top Grinder
  • Product Intro.
  • Tech. Parameters

High performance manual operated meat grinders with removable worm housing for the application in butcher shops, stores of retail chains and the catering industry.

The grinders are available either with 3-or 5-part cutter set size R70 – B98 system “Unger” or with system

“Enterprise” E22 – E32.The special design of worm and worm housing provides a top grinding quality with an excellent particle definition, a very low temperature increase of the processed material and a minimum consumption of electrical energy. A reverse switch for the disassembling of the cutter set is standard*.

The machines are fully made from high grade stainless steel. The machine body, the tray and the filler neck are welded together completely gap free for an easy, quick and hygienic proper cleaning. All CE requirements regarding safety and hygiene are fulfilled.

The model TG 100 with its 3-part cutter set “Unger” R70 performs astonishingly good for the size of its worm house. This grinder fits perfect to the demand of restaurants, small butcher shops or as a stand by machine for special meat kinds which should not come in contact with other materials.


Model

TG100

Voltage

400V, 50Hz, 3 phase

Power

1.5kw

Cutting Set

Unger

Size

R70

Output approx per   hour

150kg/h

Tray Volume

4.2L

Weight approx.

30kg

Dimension(cm)

345*355*420
