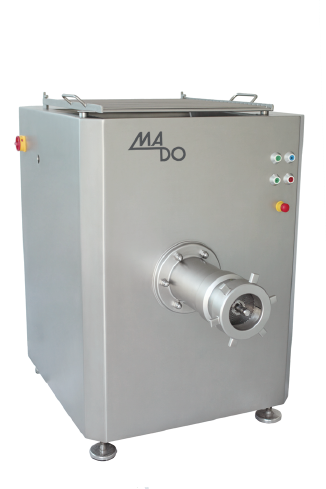

High performance meat grinders with or without mixing device and on demand also with integrated cooling system for the application in professional meat processing plants which are demanding first class performance from their equipment.
The grinders are available either with 5-part cutter set size B98 – G160 system “Unger” or with system “Enterprise” E32 – E66.
The special design of worm and worm housing provides a top grinding quality with an excellent particle definition, a very low temperature in- crease of the processed material and a minimum consumption of electrical energy.
The machines are fully made from high grade stainless steel. The machine body, the hopper and the filler neck are welded together completely gap free. The worm housing and the mixing device can be removed without tools for an easy, quick and hygienic proper cleaning. All CE requirements regarding safety and hygiene are fulfilled
The models AG 208 and AG 210 are equipped with a powerful two speed motor. Even frozen material down to minus 8° Celsius can be processed without any problem. A reverse switch to disassemble the cutter set belongs to the standard equipment of AG 208 and AG 210. AMG 204 is equipped with a mechanical ejector for the worm.
Model | AG208 | AG210 |
Power | 400V, 50Hz, 3 phase | 400V, 50Hz, 3 phase |
Power of Worm | 6.5/8.0kw | 15.0kw/ 19.0kw |
Power of Mixer | - | - |
Fusing | 32A inert | 50A inert |
Cutting Set | Enterprise/ Unger | Unger |
Size | E522/E-130 | E66/G-160 |
Output approx. | 2200 kg/h | 3000KG/h |
Hopper Volume | 120 L | 150L |
Weight approx. | 350kg | 600kg |
