Sect 360 Slicing Larger Products
  • Product Features
  • Parameters

›› Powerful blade drive

›› Integrated discharge conveyor*

›› Fully automatic lubrication system

›› Indexed or continuous product forward feed motion*

›› Adjustable gripper end position

›› Fully automatic start through photocell control

›› Computer controlled, with program storage and portioning

functions, including variable portioning, separation and

batching through touch screen*

›› Easily accessible gripper guide-shaft for effective sanitation

›› Stable cut-off blade and support frame for an accurate

and clean cut

›› Two-wing blade for higher capacity*

›› Movable*

*Accessories

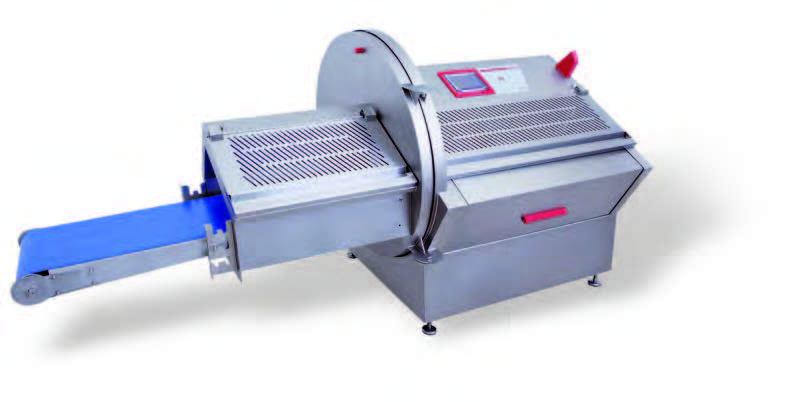

The Sect 360 is the largest portion cutting machine.

With its servo-controlled product feed and smart control system,

it is possible to portion the product into groups with the consistently identical or at choice varying slice thickness.

First-cut control and batching options are other functions that guarantee and optimize yield.

The integrated discharge conveyor enables simple and swift product handling after slicing.

Technical parameters

Sect 360

Sect 360TC

Slice /minute

200/400/ min -1

200/400/ min -1

Chamber SizeW*H*L

360*180*740mm

360*180*740mm

Cutting thickness (with spiral blade)

1-33mm

1-33mm

Cutting thickness (with special blade)

 -

1-250

Power Supply

4.2 kw

4.2 kw

Weight

400kg

460kg

Outer DimensionW*H*L

2105*1200*1490mm

2905*1200*1490mm

Discharging conveyor

NO

YES
