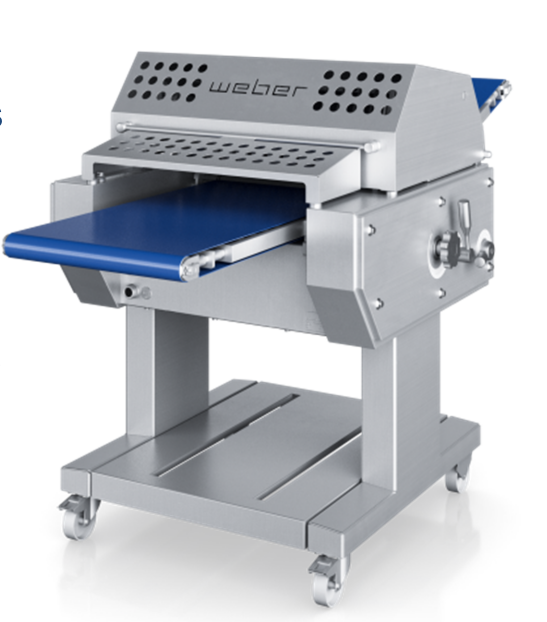

Automatic belt derinder for continuous industrial use made of high quality stainless steel
Equipment features
- Thickness setting: from 0 – 4 mm
- Patented automatic initial cut control

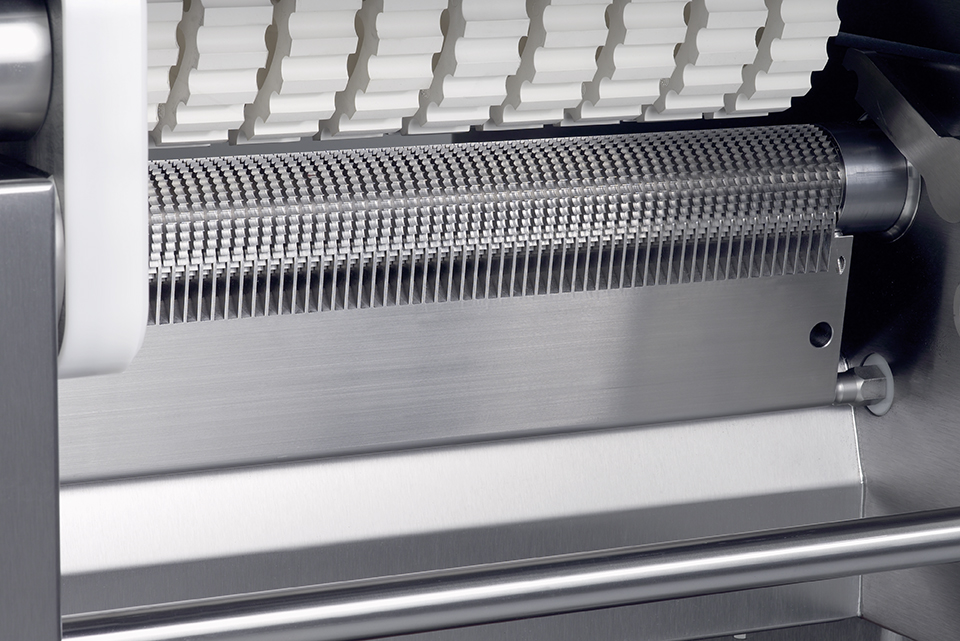

- Spring-mounted slicing system
- Knife adjustment with eccentric
- Height-adjustable pressing unit (3-fold)
- For products with a max. height of 120 mm
- Carriage- and discharge belt with quick-action clamping device
- Blue conveyor belts without ply
- Cleaning: all product-conveying parts can be fitted and removed without tools
- Cleaning position with rotating pressure roller, toothed roller and discharge belt
- Integrated box support made of stainless steel (taking of three sides possible)
- Protected on-off switch by indirect actuation
| ASB460 | ASB560 | ASB770 |
Cutting width | 460 | 560 mm | 770 |
Motor output | 1.1 KW | 1.1 KW | 1.1 KW |
Connected load | 400 V / 50 Hz / 16 A | 400 V / 50 Hz / 16 A | 400 V / 50 Hz / 16 A |
Sound pressure level | < 70 dB (A) | < 70 dB (A) | < 70 dB (A) |
Height: | 1287 mm | 1288 mm | 1288 mm |
Length | 1750 mm | 2054 mm | 2100 mm |
Width | 914 mm | 1019 mm | 1227 mm |
Weight | 360 kg | 370 kg | 445 kg |
