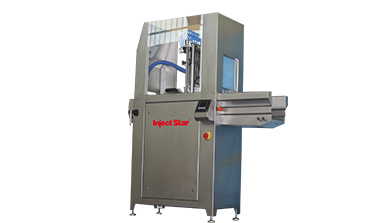

IS-300/60 Injector meat: red meat, poultry
capacity: up to 6.000 kg/h* and 1.700 pc/h*
(details are based on minimum injection quantity and maximum forward)
injection amount: up to 80 %*
needles: 15 pc 2fold needles 4 mm and 3 mm
Working width | 300mm |
Clearance | 220mm |
Number of strokes per minute | 1 Speed |
Speed of conveyor mm per stroke | 30 or 60mm per stroke |
Power | 2.2kW |
Pressure | Approx. 1-2.5bar |
Needle system | Red meat with 15 pc 2fold needles 4 mm ø 25B |
poultry with 15 pc 2fold needles 3 mm ø 25B | |
Voltage | 3x400V/50Hz |
Total power | approx. 4,3 kW |
Dimensions | 1700*925*950mm |
Machine weight | 300kg |
