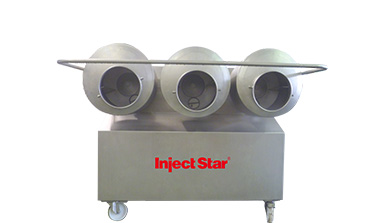

Gusto 3/55 Vacuum Massaging Unit Lab Massaging System “Gusto 3/55”
with 3 containers of approx. 55 l volume, each with individually
adjustable temperature, rotation speed, vacuum and processing time
with cooling jacket
with internal cooling aggregate
Vsp | Yes |
Computer control | ISC-B55 |
Cooling system | Container jacket cooling, cooling agent r507, cooling up to -2°c, Temperature controlled at the massaging container |
Vacuum | Up to 85 % |
Capacity kg per batch | 3*30 kg |
Container volume | 3*55L
|
Container speed | 1,5-20 rpm
|
Loading | Manual |
Unloading | Manual |
Voltage | 400 v / 3 / 50 hz (other voltage on request) |
Nominal power | Vacuum high capacity pump: 0,55 kw Drive motor for massaging container: 3 x 0,55 kw Cooling aggregate complete: 1,22 kw |
Total power requirements | 3,5 kw
|
Dimensions | L*w: 1880*1544 H: 1400mm (with open clamp 2.173 mm) |
Weight | 800kg |
