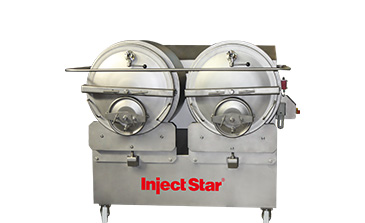

Gusto 2/55 Vacuum Massaging Unit
  • Product Intro.
  • Parameters

Lab Massaging System “Gusto 2/250”

with 2 containers of approx. 250 l volume, each with individually

adjustable temperature, rotation speed, vacuum and processing time

with cooling jacket

with internal cooling aggregate


Vsp

Yes

Computer control

Isc-b05 with 99 programs

Cooling system

Container jacket cooling, cooling up to -2°c,

Temperature controlled at the massaging container

Completed cooling system

Vacuum

Up to 85 %

Capacity kg per batch

2 x 125 kg

Container volume

2 x 250 l



Container speed

VSP 1,5-20 rpm



Loading

Manual

Unloading

Manual

Voltage

400 v / 3 / 50 hz (other voltage on request)

Nominal power

Vacuum high capacity pump: 0,55 kw

Drive motor for massaging container: 2 x 0,55 kw

Cooling aggregate complete: 1,22 kw

Total power requirements

3,5 kw



Dimensions

L*w: 1834*1964

H: 1500mm (with open clamp 2.501mm)

Weight

950kg
