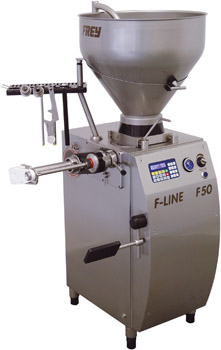

Fully electronic continual vacuum stuffer for

STRAIGHTFILLING, PORTIONING and LINKING

With detachable linking gear ADG04 and Vector drive

Filling performance up to 2.200 kg / h

Filling pressure: 30 bar

Housing and hopper completely made of

Stainless steel

Fillling hopper divisible in 25/90 liters

Vacuum pump 16m³

CAN 60 control

Portioning range 5-100.000 g (5-999 g in 0,1 g steps)

Portioning speed max. 300 port./min.

Speed and length of portioning pauses infinitely adjustable,

Counter of passage quantity, piece counter, automatic

Stop control, flow-reverse mechanism,

Adjustable 1st portion weight, memory for 99 filling programs

Electr. Pulse contact control for automatic clipping machines

Total connected load: max. 5,0 KW

400 V, 50/60 Hz
