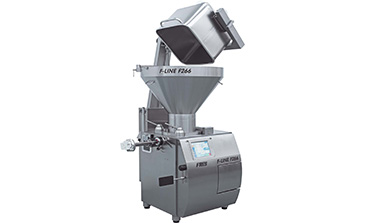

Fully electronic continual vacuum stuffer for

STRAIGHTFILLING, PORTIONING and LINKING

with FREY TOP LINE drive, additional stirrer drive

filling performance max. 11.000 kg / h

(inner and outer) machine housing and hopper are

completely made of stainless steel

hopper with 300 liters

filling pressure: 35 bar

incl. electronically locked footstep

with table of contents and indication of the product

name in the program

portioning range from 5 to 100.000 g

(5-999 g in 0,1 g steps)

portioning speed max. 1120 portions/min.

speed and length of portioning pauses infinitely adjustable

counter of passage quantity, piece counter, automatic

stop control, flow-reverse mechanism, adjustable

1st portion weight, memory for 200 filling programs

incl. programs for cooked sausages

electr. pulse control for automatic clipping machines

with integrated vacuum system and water separator

digitally controlled vacuum system

vacuum pump 21 m³, total connected load: max. 17,1 KW

400 V, 50/60 Hz

incl. accessories

industrial PC control TC733

12“ TFT colour display (800x600)

touch operation, motion control, self-explaining operation

CAN Bus for high speed communication

with attachments, Ethernet interface, USB interface
