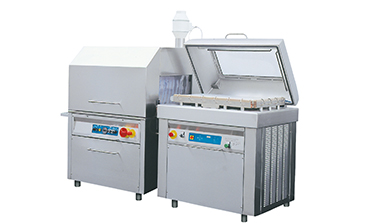

S501 B+ST170 Automatic Vacuum Machine & Hot Water Shrink Tunnel
  • Product Intro.
  • Parameters

S 501 B:

Stainless steel construction. The chamber has 2 stainless steel sealing bars front 740 mm right 455 mm. Sealing with air pressure support. Cut-off sealing separately adjustable. The machine is complete with high efficiency vacuum pump 100 cbm/h, user friendly control board, automatic lid movement, conveyor with height adjustment, vacuum controlled by sensor and vacuum stop button. Following options are possible: gas flushing, bi-active sealing, footswitch, vacuum pump 151 cbm /h.

ST 170:

Stainless steel construction. The automatic transport of the product in and out of the shrink tunnel is controlled by a photocell. Water temperature is adjusted with a thermostat.

We also offer te following standard equipment: steam exhaust release through the lid, dipping time and dipping depth of water, also time for water to drip from product is adjustable, slight on left side,

pneumatic dipping cylinder, automatic filling of water, user friendly construction, easy cleaning, manual dipping is possible, use of machine without dipping process is possible, dipping platform 820 x 450 mm and heating power 36 kW.


S 501 B   Automatic Package Machine

ST 170 Hot   Water Shrink Tunnel

Chamber Size(mm)

895*565*230

Working Area(L*W)

820x450mm

Usable Chamber   heright

160

Dipping depth

100/150/200mm

Sealing length   (mm)

1*455+1*740

Water volumel

140

Distance x(y) mm

765 (480)

Max.product weight(kg)

50

Vacuum pump   (cbm/h)

106  (151)

Power connection

400V/3Ph+N+PE/50H

Power Connetion

400V/3Ph+N+PE/50Hz

Power(Kw)

37kw

Power (Kw)

5.7 (6.8)

Safeguarding(Amp)

63

Compressed Air   (l/min)

50 at 6 bar

Compressed Air   (l/min)

25 at 6 bar

Max. Bag Size

450*800

Dimension(W*L*H/mm)

950*890*1500

Dimension(W*L*H/mm)

975*755*1,170

Machine Weight   (kg)

265

Weight(kg)

400 (410)

Heating Capacity   (Kw)

36
